Frontier 4 Layer Water Tank

Frontier water tanks are made from LLDPE (Linear Low Density Polyethylene). The industrial water storage tank resin used high ESCR (Environmental Stress Crack Resistance).  ESCR enables the tank to have maximum possible life. We are manufacturing 4 layers UV stabilized water storage tank. UV stabilization prevents degradation and ensures that there is no cracking, chalking or loss in physical properties of tank.

Inner layer is made from 100% virgin Food grade material which ensures that the water does not get contaminated when in contact with the tank & is completely safe for drinking water. Middle layer is insulation which reduces the heating of the water, maintaining a difference of 20 degrees in compare to black tanks. Outer layer is premier white colour so best water tank in home.

Its airtight screwable lid keeps dirt & flies out of the tank. The lid design uses screws rather hinge ensuring air-tight closure. Security rings are provided to put a lock for extra security against theft & improper use. Lids are safer during heavy wind due to its screw able design.

download-button
Quattro-Dual-Foam-4-Layers
saves-energy-icon

Saves Energy

Insulation layers reduce the heating of water, maintaining a difference of nearly 25-30 degree C. The insulation ensures that lesser energy is utilized for cooling.

stronger-icon

Stronger

Extra ribs have been incorporated to add strength to the tank. It reduces bulging when the tank is full, and also reduces chances of bursting under pressure

extra-secure-icon

Extra Secure

The lid design incorporates a screw system ensuring air-tight closure. Security
rings are provided to put a lock for extra security against theft and improper use.

water-fresh-icon

Keeps Water Fresh

Meshed Ventilators have been built into the design that allow the water to breath and stay fresh.

hygienic-icon

More Hygienic

Food grade plastic ensures that the water does not get contaminated when in contact with the tank.

plumbing-facilities-icon

Plumbing Facilities

Multi outlet options along with inlet and over-flow configurations for better ease of connections.

easy-installation-icon

Easy Installation

Built in provision for lifting tanks to higher floors.

Mono Foam 4 Layers – Insulated

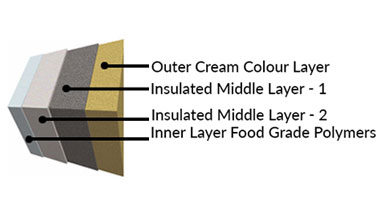

dual-form-4-layer

Frontier® insulated tanks have multiple layers of polymer engineered for saving energy, ensuring hygiene and weather resistance.
Frontier® Quattro tanks have 4 layers for higher performance.

mf3-img2

Frontier® water storage tanks do not heat up the water like the ordinary black tanks. The temperature difference between Quattro tanks and an ordinary tank can reach upto 30ºC.

small1 100 percent virgin grade
polyethylene promises high
performance and quality of Quattro
tanks.

small2 Safe for use when in contact with
drinking water, Quattro tanks are
manufactured from food grade
polyethylene.

small3 UV Stabilization prevents
degradation and ensures that there
is no cracking or chalking or loss
in physical properties in Quattro
tanks.

mf4-product1

Air Ventilator

Ventilator with insect-proof screen is provided on every tank to ensure odourless and clean water over long durations.

mf4-product1-vectorThe ventilation allows the water to breath and interact with the outside air. Stainless Steel Mesh are incorporated to keep any dust or flies out. It is essential for the tank to breathe as it will prevent built up of smell in case of prolonged non use.

mf2-product2

Hoisting Provision

Provision for ease in hoisting to the higher-floor of the building has been built in on every tank top.

mf4-product2-vectorOverhead tanks require careful handling during installation, especially while hoisting them to the top of the building. Since these tanks are usually placed on higher floors we have an inbuilt provision to ease the lifting process.

mf4-product3

Plumbing Facilities

Multiple plumbing inlet and outlet facilities for better ease of connections are prebuilt into the Quattro tanks.

mf4-product3-vectorWith our `SEAL-IT’ technology, we are able to offer you a wide range of inlet / outlet / overflow options. There in no need for your plumber to drill holes, just put a reducer where required and connect your pipe.

mf4-product4

Corrugated Side Ribs

Corrugated side profile are incorporated to build greater strength and ensure structural sturdiness for high volume capacity models.

mf4-product4-vectorThe special ribs around the stomach of the water tank counter the hoop tress that leads to bulging due to water pressure.

mf4-product5

Security Rings

Strong galvanised plated rings to lock the lid with tank top are provided as an inbuilt feature with our new Quattro tanks.

mf4-product5-vectorThe lock rings provide extra security measure against water theft during scarcity. The facility also provides a safe guard against any unwarranted vandalism.

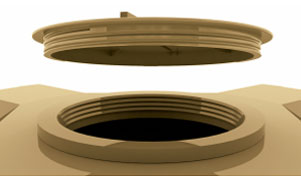

mf4-product6

Screw Fit Lid

A unique threaded lid ensures longevity of the cover and that the content of the tank are free from dust and flies.

mf4-product6-vectorScrew fit lids have a better and longer life compared to hinged-lids. They are air tight, and safer during heavy wind.

Capacity Range from 1000 to 25,000 Litres

Quattro Dual Foam Water Tanks come in a wide range of shapes and sizes to cater to your specific needs.

FVW-1001 FVW-1501 FVW-2001 FVW-3001 FVW-5001 FVW-6001 FVW-7501 FVW-10001 FVW-15001 FVW-20001 FVW-25001
LITRES [ l ] 1000 1500 2000 3000 5000 6000 7500 10000 15000 20000 25000
DIAMETER [ mm ] 1120 1350 1350 1510 1510 1510 2100 2600 3060 3540 3540
HEIGHT [ mm ] 1200 1320 1670 2030 2120 2120 2300 2125 2450 2450 2950
Inlet 6 6 6 6 6 6 6 6 6 6 6
Outlet 6 6 3, 6 3, 6 3, 6 3, 6 3, 6 3, 6 3, 6 3, 6 3, 6
Overflow 9 9 9 9 9 9 9 9 9 9 9
Size [ mm ] 32 32 50 50 50 50 50 50 100 100 100

+

Customization

Customized solutions for both domestic and commercial usage are provided. Tank accessories are in-built according to design specified.

Plumbing Facilities

Multi options for inlet, outlet and over-flow for specific configurations can be incorporated.
Available SIZES: 25 mm, 32 mm, 50 mm (standard BSP threads)

Multiple Ventilators

Multiple ventilators with insect proof screen can be
installed on a single tank.
COMMON SIZE

qdf4-img1

Site Preparation & Installation

1

Install the tank in an upright position, supporting the entire base of the tank on a solid level surface. Ensure that the area is free from sharp stones, iron bars or any debris

2

The site must be solid, level, compacted base that extends beyond the diameter of the tank. Suitable bases include brick, concrete, gravel with sand top surface between 300mm and 400mm in depth.

3

Leave sufficient space between the tank and any surrounding structures to allow for expansion when the tank is filled. We recommend a minimum of 150mm (6 inches) all around. Position the tank ensuring best access for filling, maintenance and safety.

4

Ensure the tank is protected from strong winds (especially when empty). If necessary strap it down.

5

Connect all pipe work, fittings and accessories once location has been established. All pipe work and fittings connected to the tank should be supported.

Water tank stands can be used but must be designed by a qualified consulting engineer. Failure to follow the installation guidelines will render any warranty null and void.

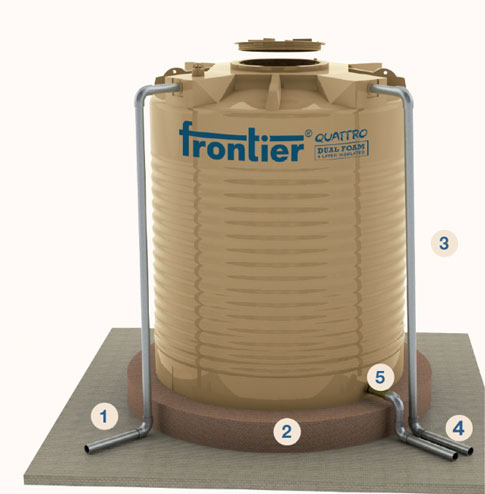

qd4f-install
1
Insert a length of flexible pipe to absorb shocks & movements of pipe fittings from tank. Position the pipe directly on ground to avoid damage caused by standing over pipes.
2
Tank overflow must be piped away from the tank to avoid undermining of tank base
3
Unsupported pipe work puts excessive strain on fittings and tank wall. Over period of time, this will lead to stress in the tank. This kind of installation should be avoided at any cost

General Safety

water-storage-icon
Water storage tanks must not be used for underground installation unless supported by load bearing walls and full underground slab.
Move-the-tank-icon
Move the tank with care, only when it is completely empty & away from any construction material at site.
Cylindrical-water-storage-tanks-icon
Cylindrical water storage tanks are designed for static applications (not for transport purposes) and are heavy when full. Kindly use only Horizontal design tanks for transport application.
Do-not-climb-icon
Do not climb or stand on the tank (for example, during filling). The outer surface of the tank can be a slip-hazard.
tank-structure-icon
The tank structure and integrity of seals could be affected if the pipe-work and fittings are not sufficiently supported. Please refer to instructions on lid /warranty card.
